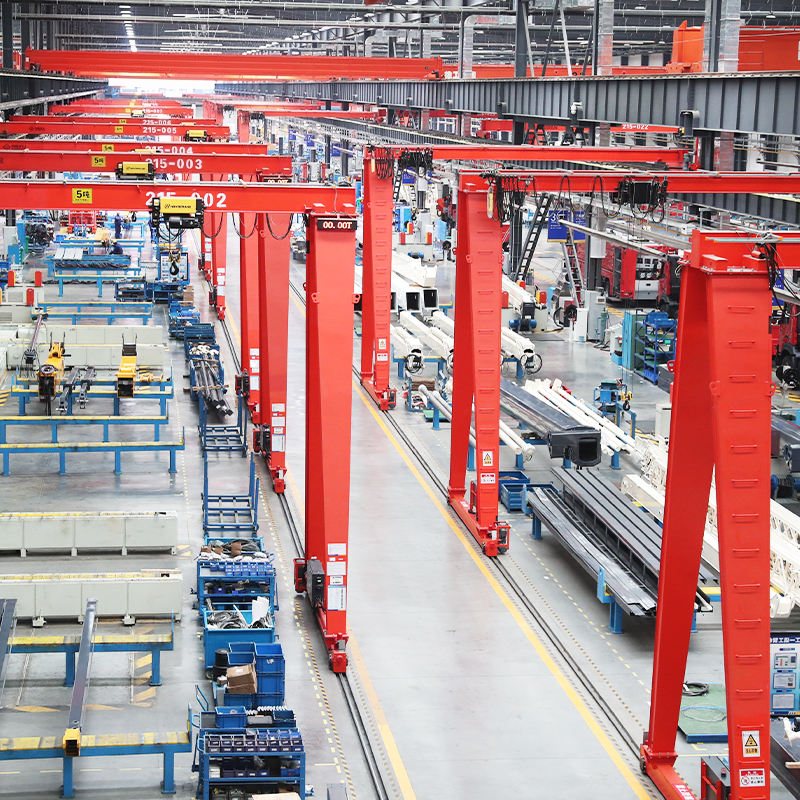

This single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field. The single girder semi gantry crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure.

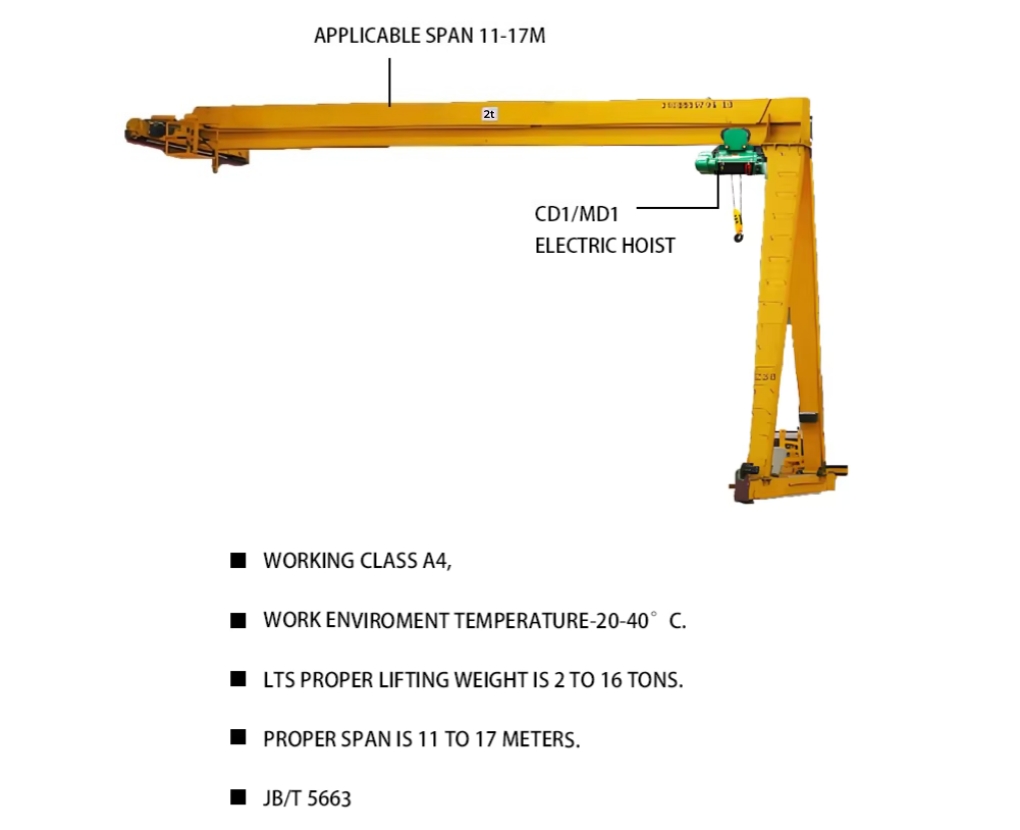

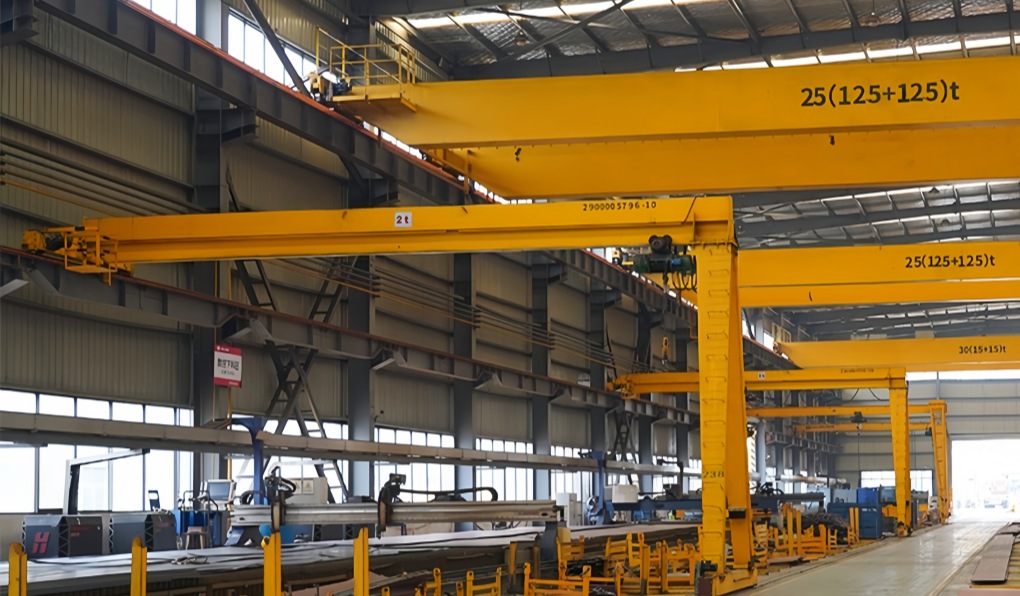

BMH model single girder semi-gantry crane is developed from MH model gantry crane and LDA model overhead crane, it is a kind of track traveling mid-duty type gantry crane, the one beam end traveling on wall mounted track, another beam end traveling on ground track, the capacity for 2t to 10t, span from 7.5m to 20m, working temperature within -20--+40 centigrade.

This Semi Gantry Crane is commonly used gantry crane, it be used in outside/inside warehouse for loading/unloading and lifting material.

The control models are pendant pushbutton control or wireless remote control.

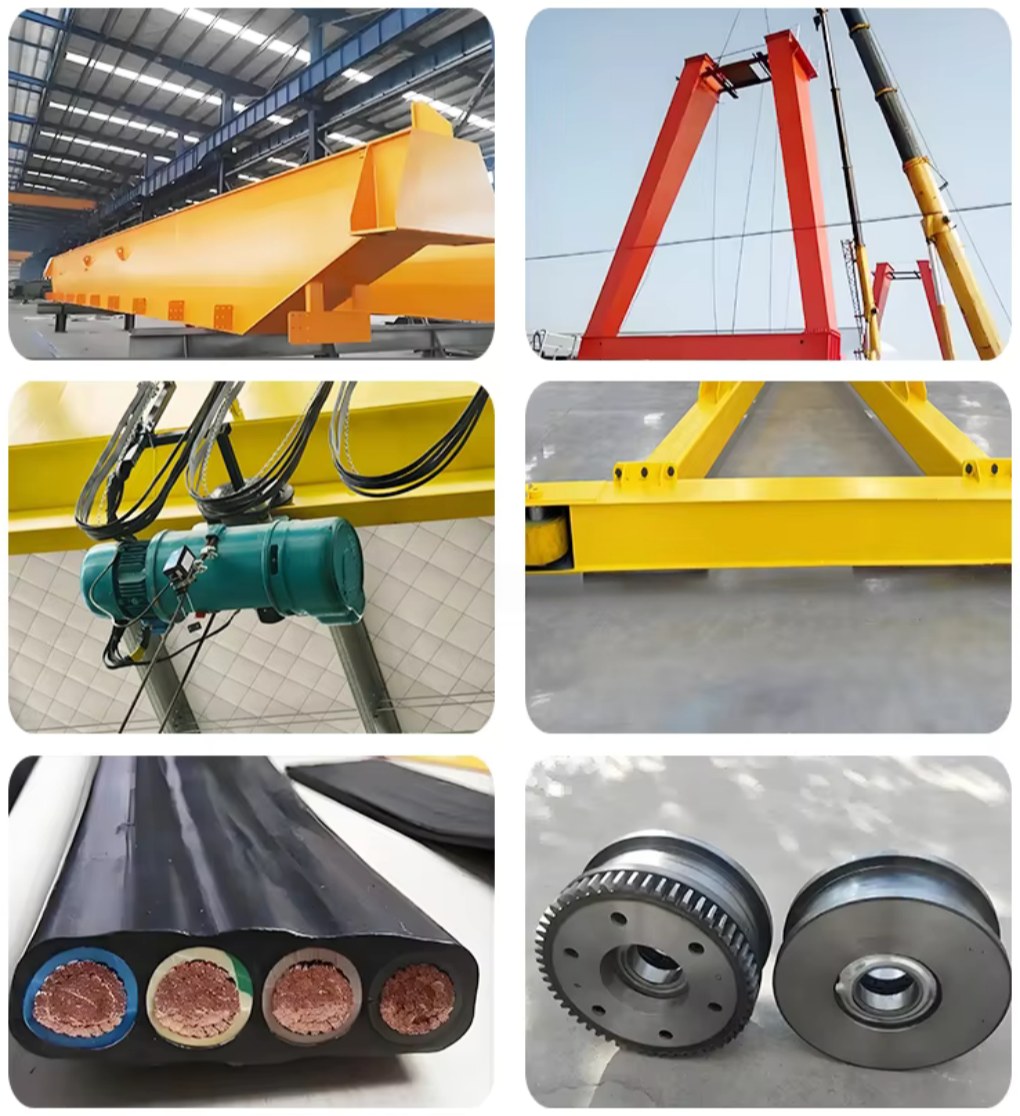

Details Images:

1. On material:  All compression structural part of crane's components is made of high quality materials confirming with the regulations and standards, whose inspection report can be provided when required.

2. On welding: The welding of steel structures will be strictly checked and inspected by specialist and the inspection reports also can be provided on requirement.

3. On motor: Top brand motors are installed with good performance and with Class F insulation and IP54 protective class.

4. On electric system: PLC control to all the mechanism and any speed requirement can be achieved.

5. On control system: wireless control and pendant control can be your choices.

6. On painting: 3 layers of painting is painted to protect the steel from rusting.

7. On safety: Various protection measures are taken to ensure the safety of crane and operation.    Overload limit, height limit, rail end stop limit for traveling are used to protect mechanical system and short circuit protection, lose phase protection, low-voltage protection, power failure protection, over current protection are used to protect electric system.

Advantage:

1. Simple and compact structure, steady performance.

2. Easy to install and high efficiency.

3. Overload, low voltage protective device.

4. Pendent control and remote control.

5. Easy maintenance.

6. Preventing hook clashing the top, set shields and barriers.

7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.

8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.

FAQ:

Q1: What Is a BMH Model Single Girder Semi-Gantry Crane?

A1: It is an industrial lifting system featuring a single main girder, semi-gantry support structure, and electric hoist for lifting and moving heavy materials.

Q2: What Are the Main Applications of This Single Beam Half Gantry Crane?

A2: It is suitable for steel structure workshops, factories, warehouses, machinery manufacturing plants, and material handling areas.

Q3: What Is the Function of the Electric Hoist?

A3: The electric hoist provides powered lifting and lowering, helping improve handling efficiency and reduce manual labor.

Q4: What Is the Difference Between a Semi-Gantry Crane and a Full Gantry Crane?

A4: A semi-gantry crane typically has one side supported by a building-mounted runway and the other by legs running on floor rails. A full gantry crane is generally supported by legs on both sides.

Q5: What Materials Can This Crane Handle?

A5: It can handle steel beams, metal components, machinery, industrial equipment, and other loads within its rated lifting capacity.

Q6: Can the Semi Gantry Crane For Workshop Be Customized?

A6: Yes. The lifting capacity, span, lifting height, travel speed, and other configurations can be customized according to project requirements.

Q7: Is This Crane Suitable for Steel Structure Workshops?

A7: Yes. It is suitable for lifting and transporting steel components during fabrication, assembly, and other workshop operations.

Q8: Does the Crane Require Floor Rails?

A8: Typically, yes. The semi-gantry side runs along floor-mounted rails, while the opposite side travels on an elevated runway system. The actual arrangement depends on the design.

Q9: How Do I Choose the Right Crane Capacity?

A9: Consider the maximum load weight, material dimensions, lifting height, working frequency, and workshop layout before selecting a suitable model.

Q10: What Information Is Needed for a Half Gantry Crane Quotation?

A10: Please provide the required lifting capacity, span, lifting height, travel distance, working environment, and power supply specifications to help determine a suitable configuration and quotation.
