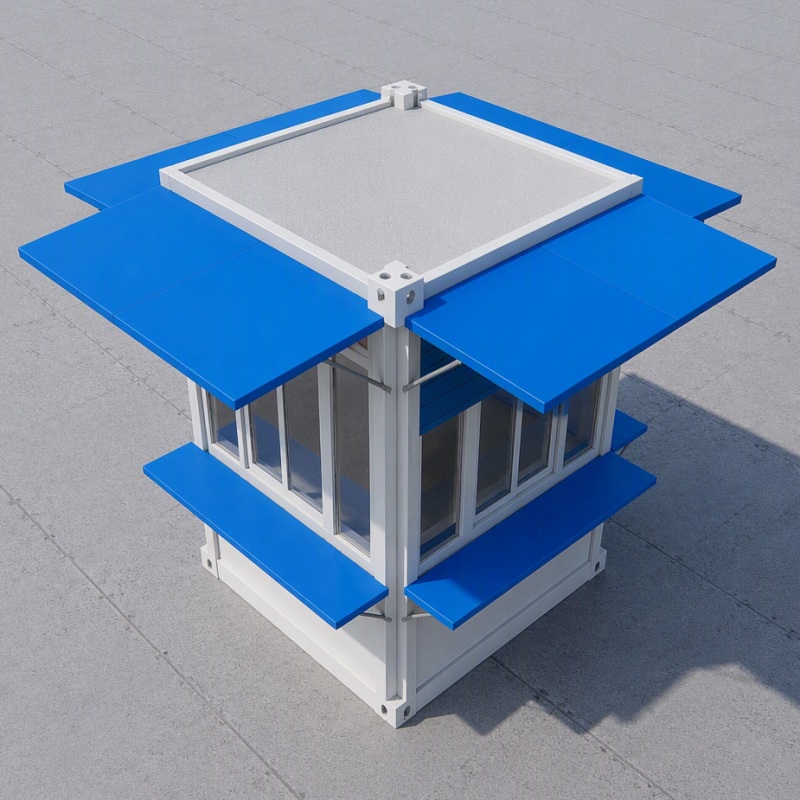

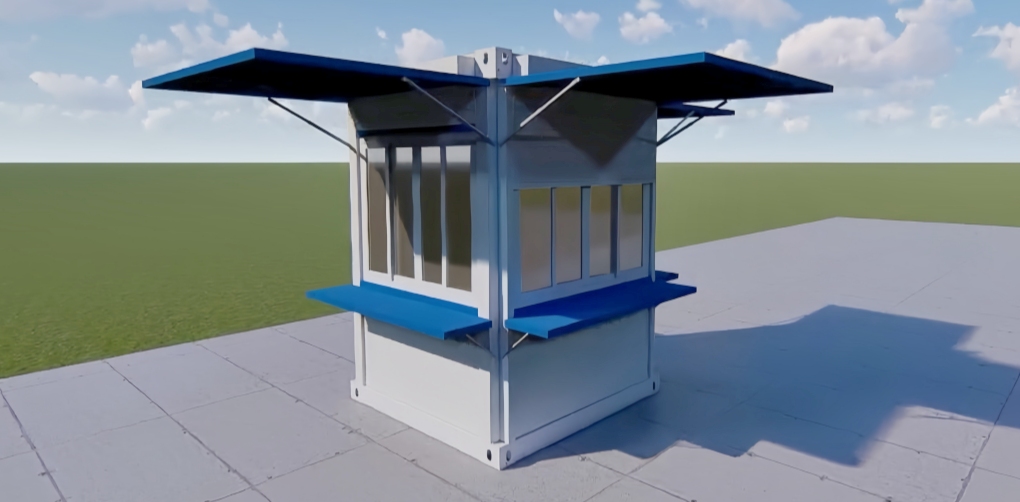

Constructed with high-strength Light Gauge Steel (LGS) framing and insulated weather-tight wall panels, this Customized Mobile Cafe Container Kiosk combines ultra-compact transportation efficiency with rapid automated setup:

• Exact Modular Footprint: In its standard closed state, the kiosk measures precisely 2.00 m (L) × 2.00 m (W) × 2.89 m (H), featuring ISO standard corner container castings for standard crane hoisting and flat-pack container shipping.
• Electric Motorized Unfolding System: Equipped with an electric motorized mechanism and heavy-duty angled support struts, the overhead protective sunshade canopies smoothly unfold outward to provide a 1.50-meter deep protective overhang on 3 active sides.
• Multi-Sided Serving Capability: Three full sides feature 4-pane vertical glass service windows paired with exterior horizontal fold-out serving counter shelves (finished in durable blue powder coating), optimizing customer ordering and pickup flow.
• Rear Access & Forced Ventilation: The back elevation features a lockable full-height access door bordered in accent blue trim, complemented by an upper built-in louvered exhaust fan vent for constant internal air circulation.

Product Design & Engineering Details:

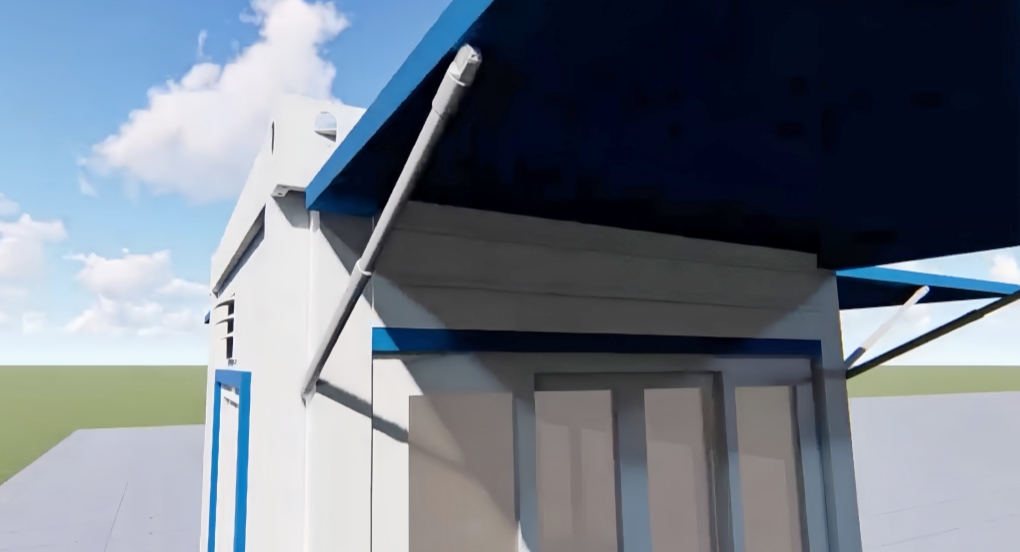

1. 1.5m Electric Motorized Folding Canopies

• The blue roof canopies on the front and both side elevations are driven by an internal motorized system, extending smoothly to a 1.5m projection.
• Supported by high-tensile angled steel support struts connected directly to the structural corner posts, ensuring wind stability and reliable water shedding.

2. High-Strength Light Gauge Steel Container Frame

• Fabricated from hot-dip galvanized light gauge steel with electrostatic outdoor powder-coating to resist corrosion, rain, and UV fading.
• Features standard ISO container corner fittings at all 8 corners for secure lifting, transport strapping, and on-site foundation leveling.

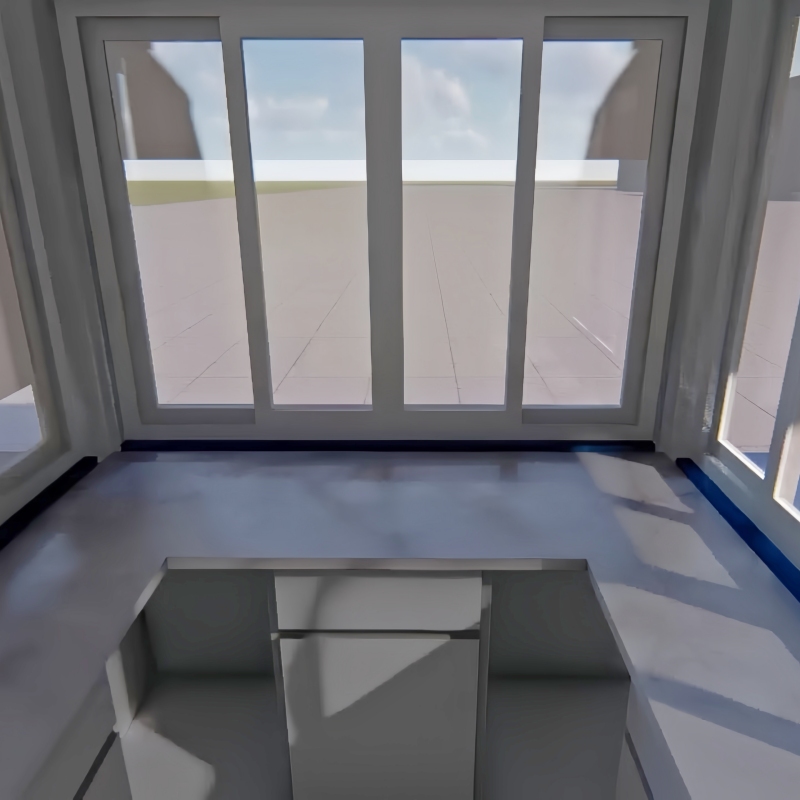

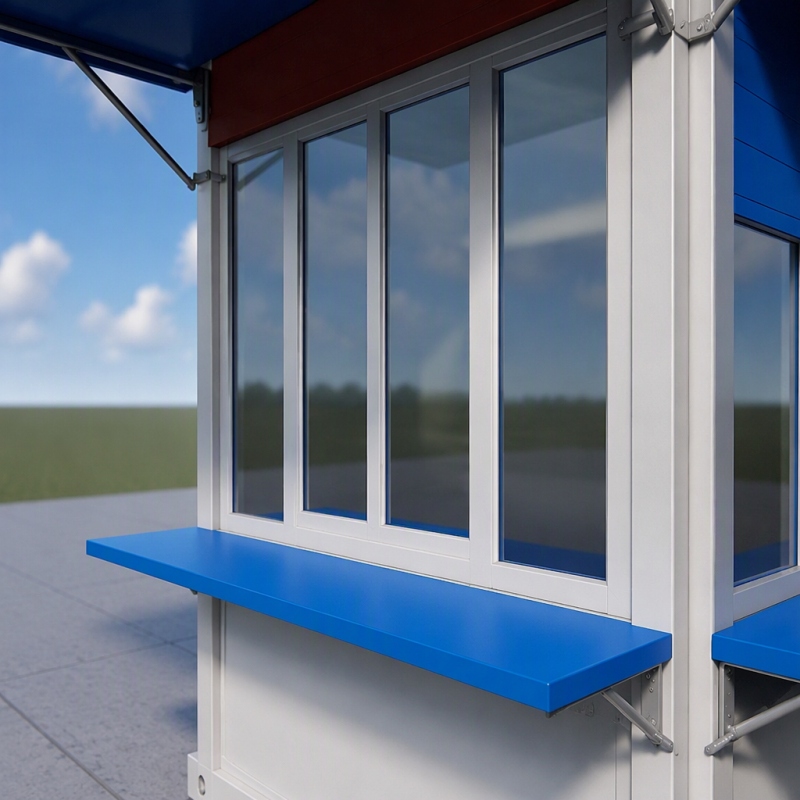

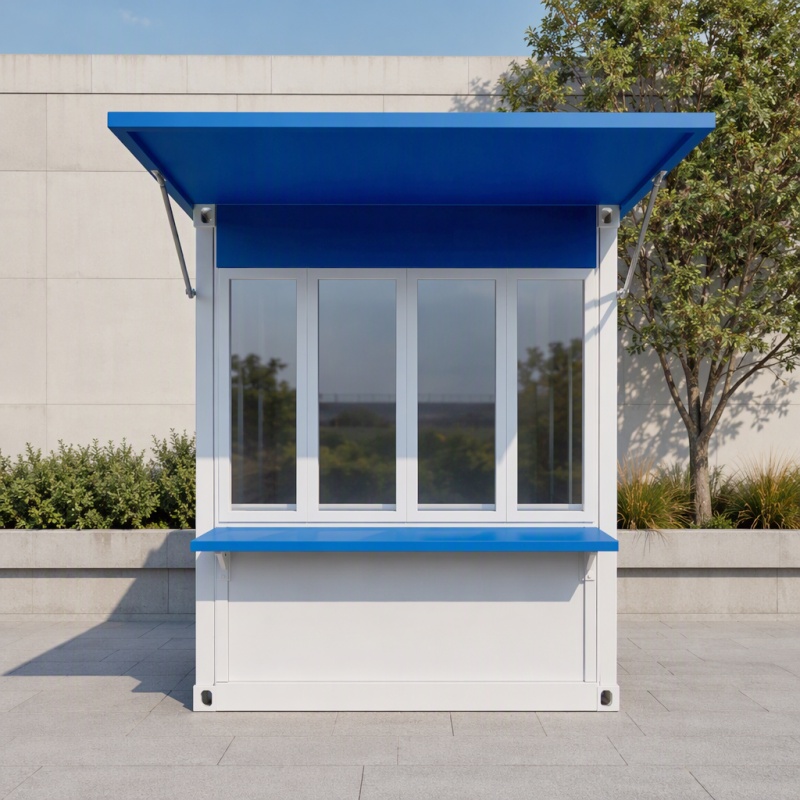

3. Ergonomic 3-Sided Service Windows & Foldable Counters

• Three sides feature 4-pane vertical tempered glass windows with smooth sliding action.
• Directly beneath the windows, exterior blue fold-down service counter shelves (mounted at standard 950mm height) provide ample space for customer interaction, card terminals, and beverage serving.

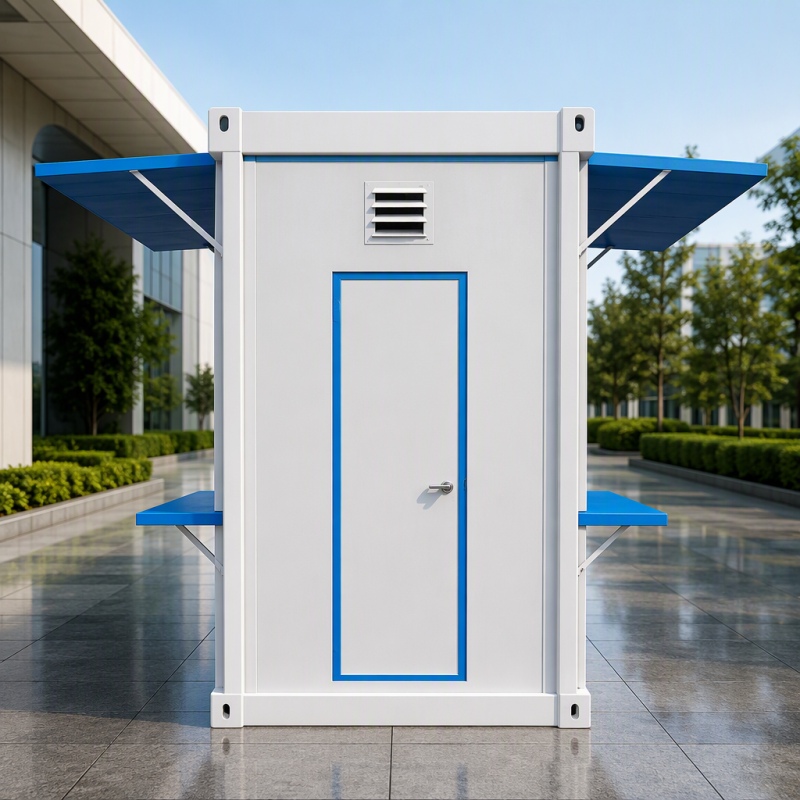

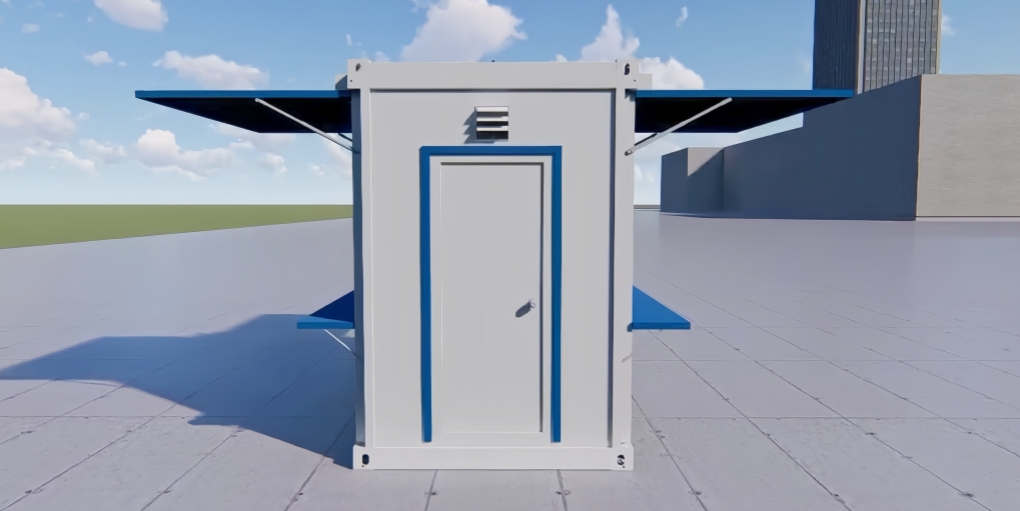

4. Dedicated Rear Entrance & Exhaust Ventilation

• The rear elevation features a clean single access door framed with signature blue border trim and equipped with a heavy-duty locking handle.
• An integrated louvered ventilation exhaust fan vent is installed directly above the door to ensure continuous hot-air exhaust from coffee machines and refrigerators.

FAQ:

Q1: What are the exact dimensions of this Light Steel Modular Container Cafe Booth?
A1: The base container structure measures 2000 mm (Length) × 2000 mm (Width) × 2890 mm (Height) in its closed state. When the motorized canopies on all three active sides are fully extended, each canopy projects outward by 1500 mm, expanding the covered operational width up to 5000 mm.

Q2: How does the automatic window and canopy unfolding system work?
A2: The overhead canopies are motorized and connected to heavy-duty angled support struts. With a single control switch inside the kiosk or via remote control, the canopies automatically unfold outward and lock into position in under 30 seconds without manual lifting.

Q3: How many service windows does this 2m × 2m Automatic Container Kiosk have?
A3: The kiosk features 3 active service sides (front and both lateral sides), each fitted with a 4-pane vertical tempered glass sliding window and a durable blue fold-out service counter ledge.

Q4: How is ventilation handled inside the enclosed kiosk?
A4: The kiosk includes an integrated louvered forced-exhaust ventilation fan installed above the rear entrance door, allowing rapid heat and steam extraction generated by commercial espresso machines and refrigeration units.

Q5: Is the Flat Pack Coffee Kiosk weatherproof and suitable for all seasons?
A5: Yes. All joints, window tracks, and canopy hinges are fitted with industrial EPDM waterproof rubber sealing strips. The insulated sandwich panel walls and roof provide superior insulation against intense summer heat and winter cold.

Q6: What electrical installations are pre-wired inside the unit?
A6: The kiosk comes pre-wired with an internal circuit breaker distribution box, multiple standard electrical outlets (customizable to US 110V, EU 230V, UK, or AU standards), internal lighting connections, and external main power plug interfaces.

Q7: Can the color scheme or logo be customized?
A7: While the standard model features the signature white container body with blue canopies and trim, custom RAL powder-coating colors, exterior brand vinyl wraps, and illuminated 3D logo lightbox signage can be customized upon request.
