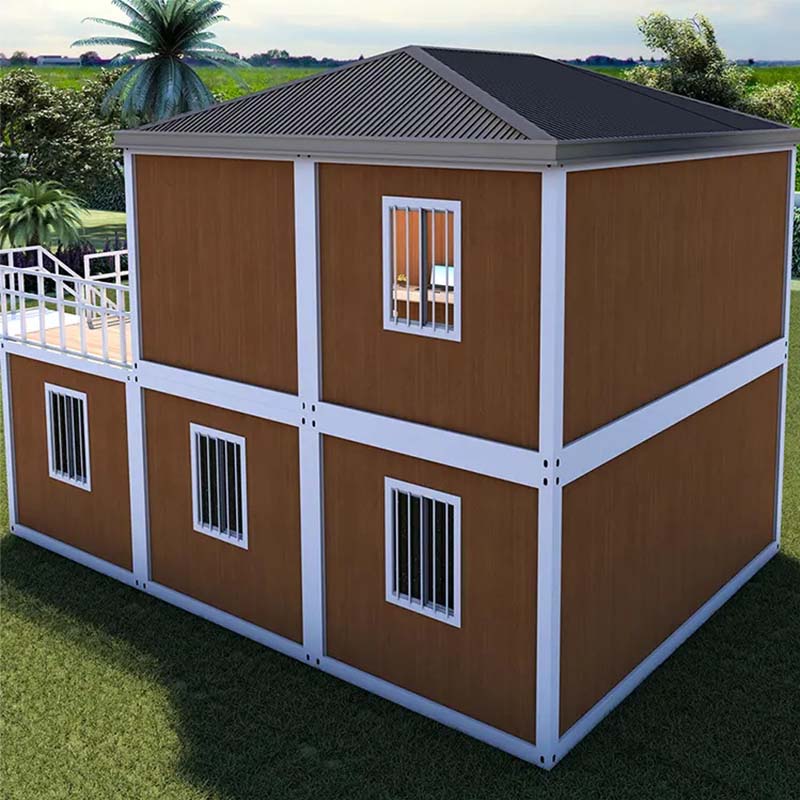

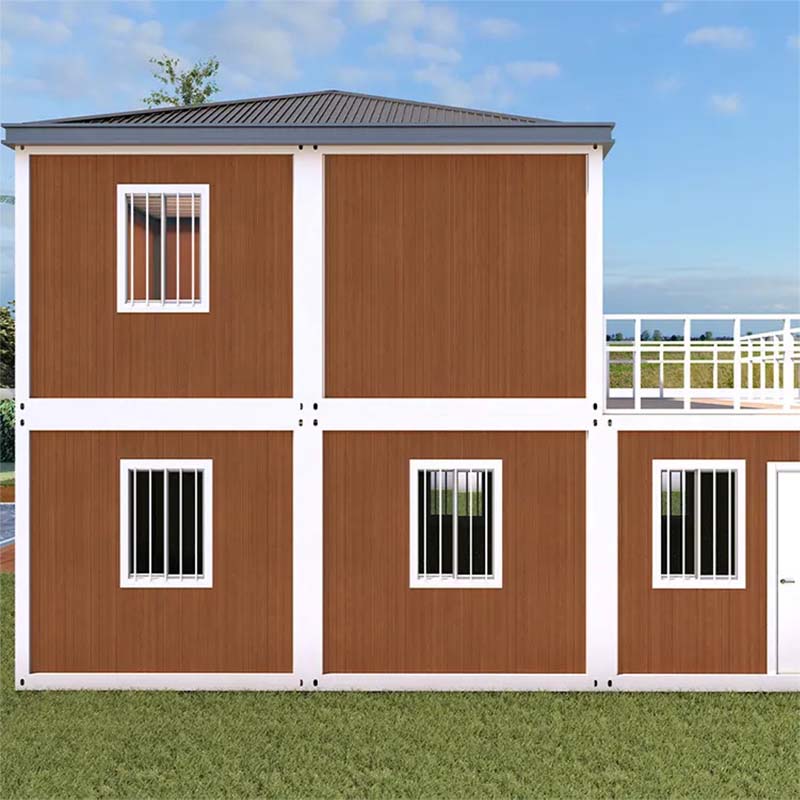

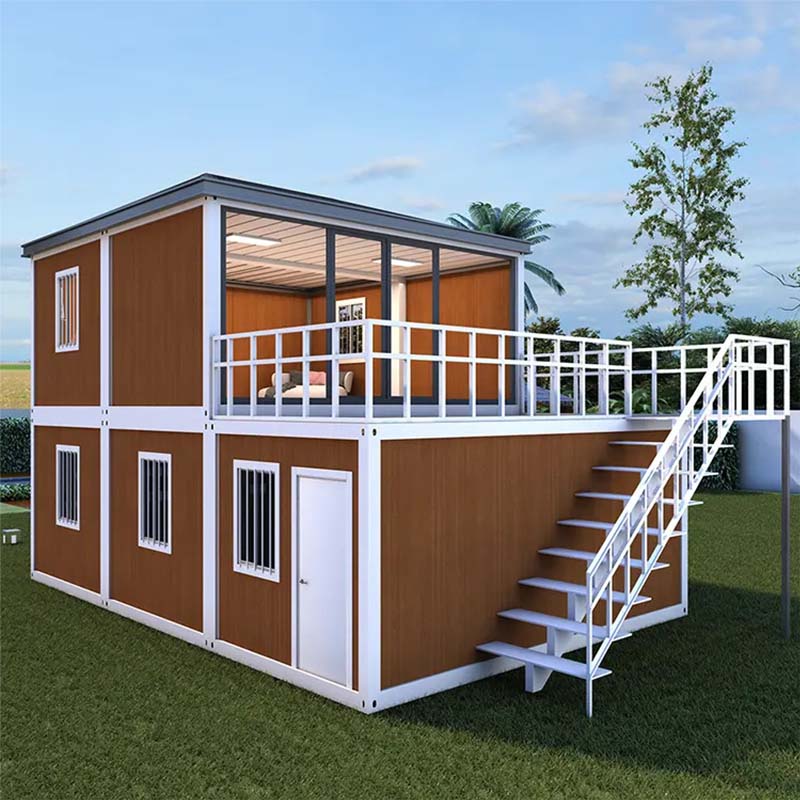

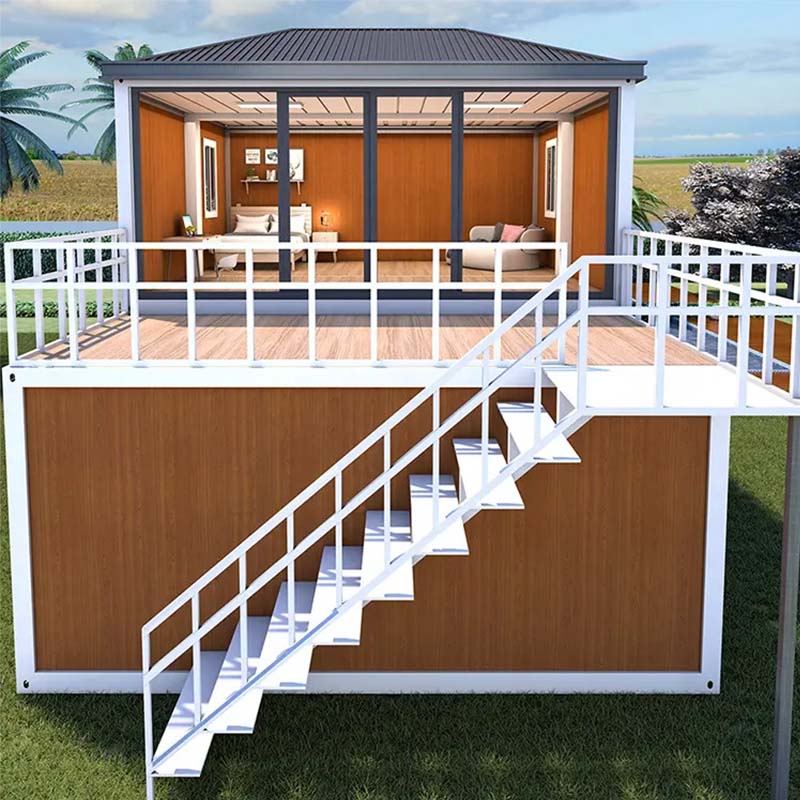

China Prefabricated cheap 2 To 4 Bedrooms Flat Pack Living Container Home is easy for moving, transporting and water cleaning. With good water proof, sound-insulated, heat preservation, the container house's service life can be over 30 years. Customized design is acceptable.
Item No :
TSH-01Order(MOQ) :
1Product Origin :
ChinaDimensions :
2990*6055*2896mmFrame Structure :
Galvanized steelWall Panel :
Rock wool boaroRoof Load :
100kg/sqmFloor :
Cement fiber board and glass magnesium boardWindow :
Plastic steel window, aluminum alloy windowDoor :
Aluminum alloy doors, plastic steel doors, stainless steel doorsProduction Capacity :
1000
|
China Prefabricated cheap 2 To 4 Bedrooms Flat Pack Living Container Home |
||
|
Size:2990*6055*2896mm |
||
|
No. |
Name |
Info |
|
1 |
Top Frame |
Beam: 2 pcs of 5530*2.0 2 pcs of 2138*2.0 4 pcs of 210*150 Purlins 80*40*1.2 18 sqm of Glasswool18 sqm Bake painted steel palted 0.45mm |
|
2 |
Bottom Frame |
Beam:2 pcs of 5530*2.0 |
|
3 |
Column |
4 pcs 2.0mm 210*150*2526 |
|
4 |
Bottom Accessories |
50 S sink |
|
5 |
Floor |
5 pcs of 18mm cement fiber board |
|
6 |
PVC floor |
1.6mm PVC floor |
|
7 |
Door |
steel door 970*1970 |
|
8 |
Window |
PVC single layer glass sliding window 930*1200*2 |
|
9 |
Wall Panel |
steel rockwool sandwich panel V950 0.3mm/50(50kg/m³) |
|
10 |
Pipe |
4 pcs of 50PVC 2750-4 |
|
11 |
Ceiling |
831 type ceiling |
|
12 |
Corner trimming |
4 pcs of corner trimming |
|
13 |
Accessories |
1 set of bolts and glue |
|
14 |
Accessories |
Skirting line |
|
15 |
Electronical system |
1 pc of 3-hole socket ,3 pcs of 5-hole sockets, 1 switch distribution box, 1 industrial socket, wire, 36W strip light *2 (power distribution is done on the inner corner of the inner wall) |
We provide many color options of the flat pack container house for you to select.
Compared with 20GP shipping container, our flat pack container house is more cost effective both in product price and transport cost.
1.Convenient for moving,transporting,water cleaning.
2.Service life:30 years
3.Good waterproof, sound-insulated,heat preservation,environmental protection.
4.The layout is customized design.
5.International standard can be put on other shipping container.
6.Beautiful appearance,different colors.
Flat pack container house can be used for outdoor office, outdoor home, outdoor mall, temporary hospital, construction sites living house etc.
