Off-Grid Home Hybrid Solar System Advantages:

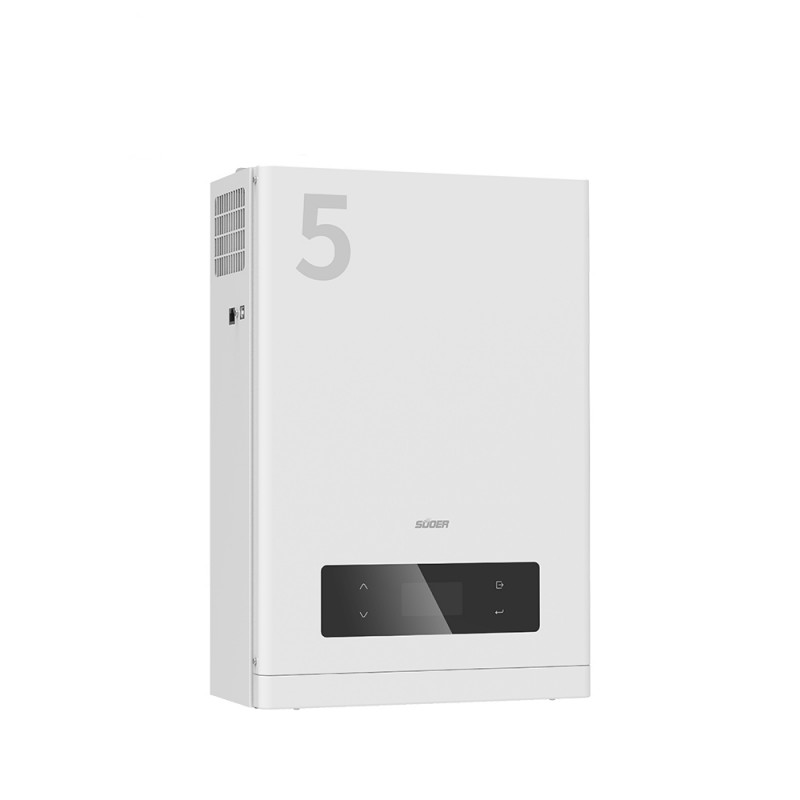

Off-Grid Inverter

AC input rated voltage: 230Vac

AC input voltage range: 90-280Vac (170-280Vac full power output)

AC input rated frequency: 50/60Hz

AC input maximum current: 30Aac

AC output rated voltage: 230Vac±5%

MPPT tracking voltage range: 240-450Vdc (full power input)

AC output rated frequency: 50Hz

AC output rated power: 5000W

Maximum charging current: 80A

Maximum discharge current: 104A

PV maximum input power: 4000W

PV array open circuit voltage: 500Vdc

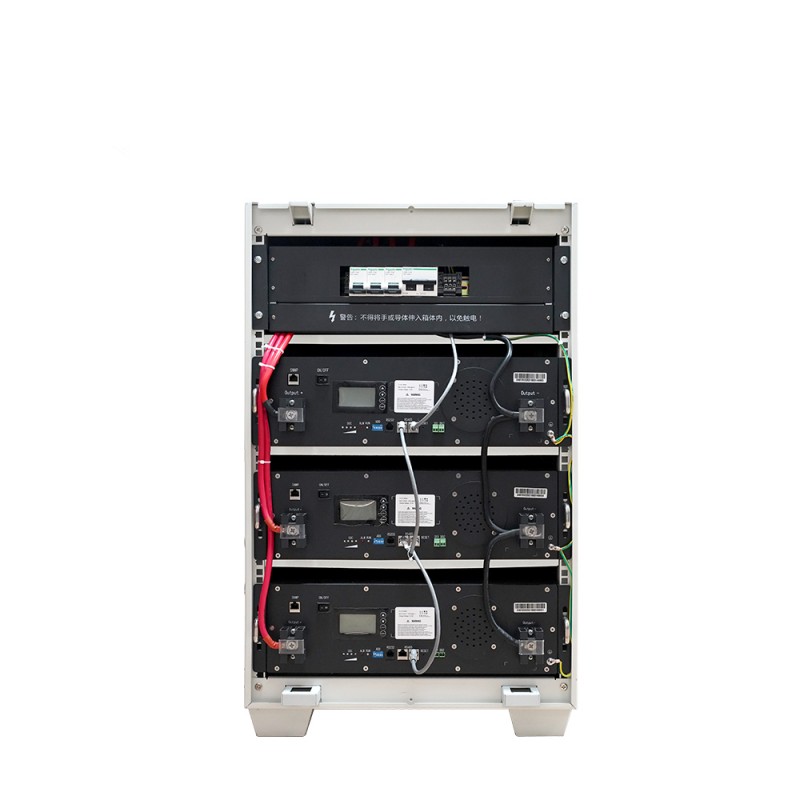

Energy Storage Battery Cabinet

Battery Type: Lithium Iron Phosphate Battery

Rated battery voltage: 51.2VDC

Float voltage: 56.4VDC

Battery overvoltage protection value: 58VDC

Battery under-voltage protection value: 42VDC

Battery capacity: 100AH×3 groups

Maximum charging current: 100A

Maximum discharge current: 100A

Communication interface: RS485

Capacity indication 4 lights LED: 25%-50%-75%-100%

Charging working temperature: 0℃～60℃

Discharge working temperature: -20℃～60℃

Working humidity: 10%～95%RH

AC And DC Distribution Box

AC input circuit breaker: 32A/2P×1

AC input lightning protection: 1+1, In=20KA

AC output circuit breaker: 32A/2P×1

Battery access circuit breaker: 125A/2P×1

PV input circuit breaker: 16A/2P×1

Photovoltaic input lightning protection: 2+1, In=20KA
