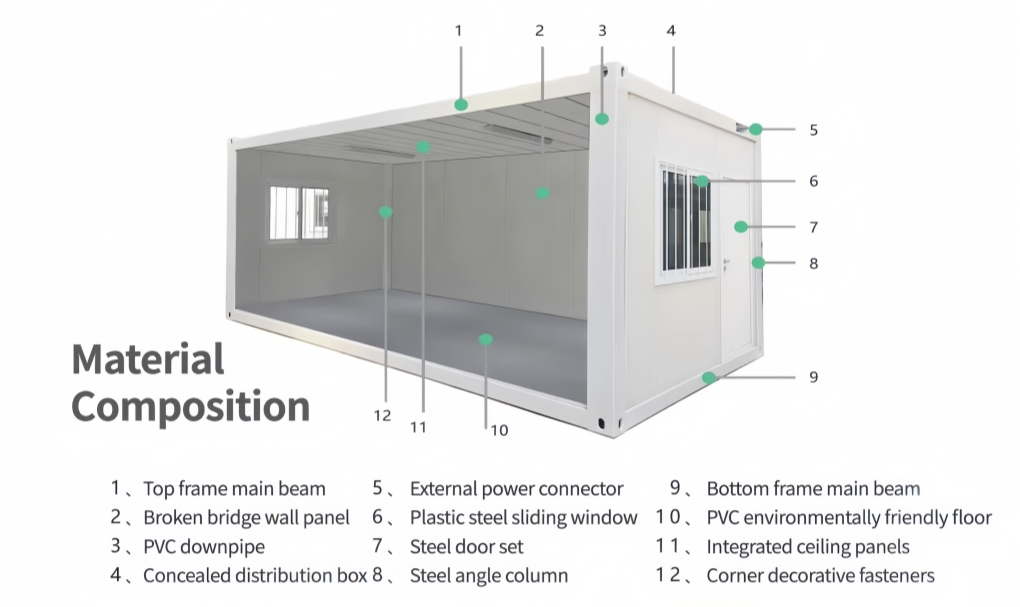

Frame Structure

 * Top Frame: 2.3mm Q235 steel, welded, rust removal, electrostatic powder spraying, galvanized

 * Bottom Frame: 2.3mm Q235 steel, welded, rust removal, electrostatic powder spraying, galvanized

 * Columns: 2.3mm Q235 steel, welded, rust removal, electrostatic powder spraying, galvanized

 * Lift Corner Pieces: 3.5mm Q235 standard parts, galvanized

Roofing System

 * Outer Steel Sheet: 0.4mm Color Steel Sheet

 * Insulation Layer: 75mm fiber glass wool with silver paper, density: 14kg/m³, Grade A fire-proof

 * Ceiling Board: V-831 type, 0.4mm Integrated Color Steel Sheet

Wall System

 * Wall Panels: 75mm Rock Wool Board (0.326/0.326mm), density = 80kg/m³, Grade A Fire-proof & Non-flammable

Floor System

 * Fiber Cement Board: 18mm thick Fiber Cement Board

 * Interior Flooring: 1.6mm thickness plastic board

Windows & Doors

 * Windows (2 Sets): 930mm × 1130mm, PVC sliding window with security bar and flyscreen

 * Door (1 Set): 840mm × 2035mm security door with lock, dark grey color

Electrical System

 * Sockets (3 Pcs): Five sockets (1pc AC socket, 4pcs general sockets)

 * Lighting (2 Pcs): 2pcs LED lights, 2*15W

 * Electric Cable (31m):

    * Main power cable: 6 mm²

    * AC cable: 4 mm²

    * Socket cable: 4 mm²

    * Lighting & switch cable: 2.5 mm²

 * Switch (1 Pc): Single Switch

 * Distribution Box (1 Pc): CEE industrial plug, socket voltage 220V-250V, 2P32A, fixed in explosion-proof box at the top beam of the short side, IP44 standard

Additional Accessories

 * Rainspout (4 Pcs): Φ50PVC

 * Accessories (1 Set): Self-tapping screws, glue, edge covers, galvanized hexagon bolts

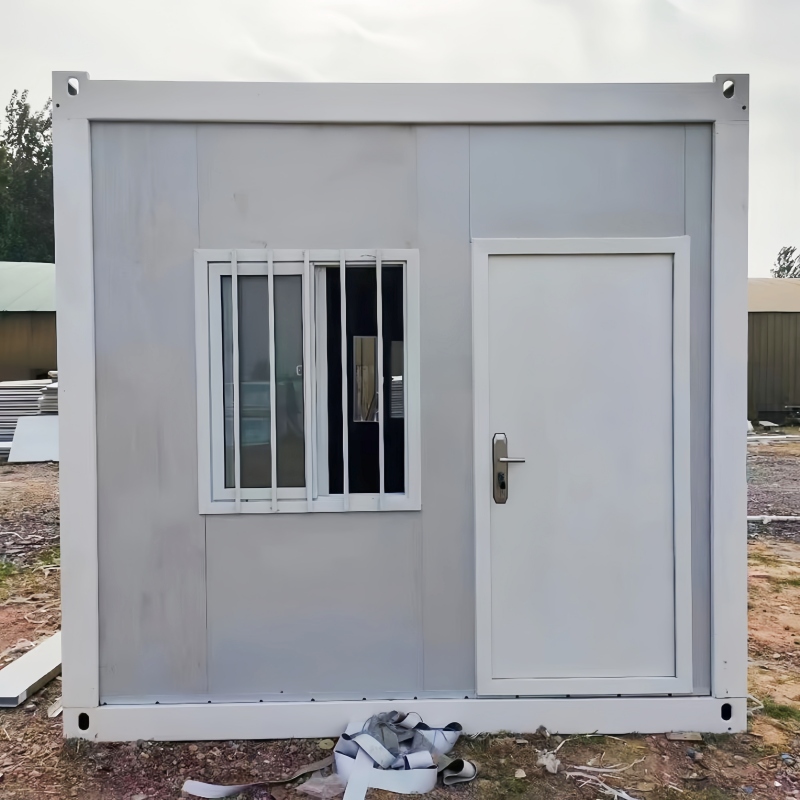

20ft Flat Pack Prefabricated Container House is designed for fast and simple installation. First, a stable and level foundation such as a concrete base is prepared to ensure the structure is secure. Then the steel frame is assembled, starting with the bottom frame, followed by the corner posts and the top frame. After the main structure is fixed, the wall panels and roof panels are installed and secured with bolts. Doors, windows, flooring, and insulation materials are added next. Finally, the electrical and plumbing systems are connected if needed. With a professional team and proper tools, a standard Custom Easy Install Flat Pack Container House can usually be installed within a few hours, making it a convenient and efficient housing solution.

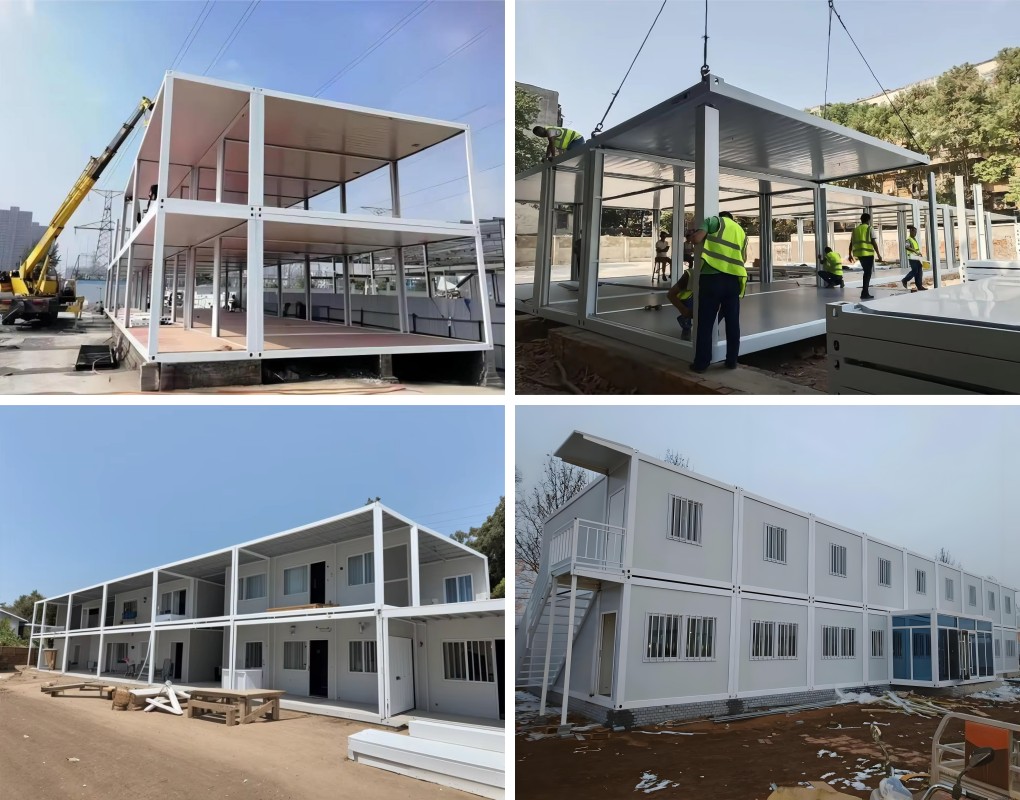

Showcase:

FAQ:

Q1: How long does it take to install a China Luxury Prefabricated Flat Pack Container Home?

A1: With a professional team, a standard unit can usually be installed within a few hours.

Q2: Can I customize the design of a Prefabricated Steel Flat Pack Container Home?

A2: Yes, customers can customize the size, layout, color, doors, windows, and interior design.

Q3: Is a Flat Pack Container House durable?

A3: Yes, it is built with a strong steel structure and durable wall panels, making it stable and long-lasting.

Q4: Can Flat Pack Container Houses be used for different purposes?

A4: Yes, they can be used as offices, dormitories, homes, shops, or temporary buildings.

Q5: Are Flat Pack Container Houses easy to transport?

A5: Yes, the flat-pack design allows multiple units to be loaded into one container, reducing shipping costs.

Q6: Can Flat Pack Container Houses be expanded?

A6: Yes, multiple units can be connected together to create larger spaces.

Q7: Are Flat Pack Container Houses weather resistant?

A7: Yes, they are designed to withstand wind, rain, and various weather conditions.

Q8: Can the house be disassembled and relocated?

A8: Yes, Flat Pack Container Houses can be dismantled and moved to another location if needed.
