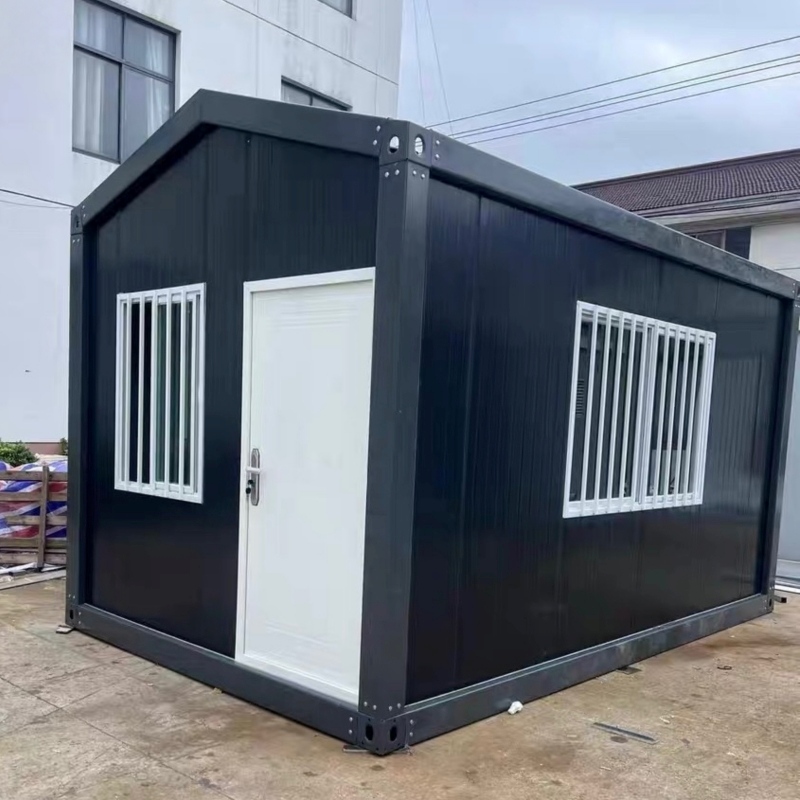

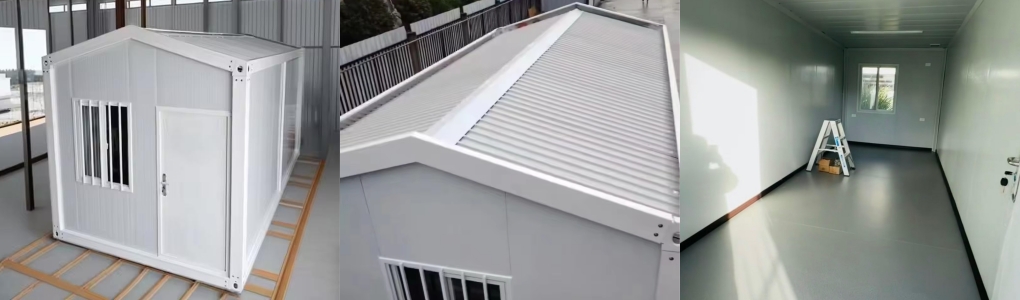

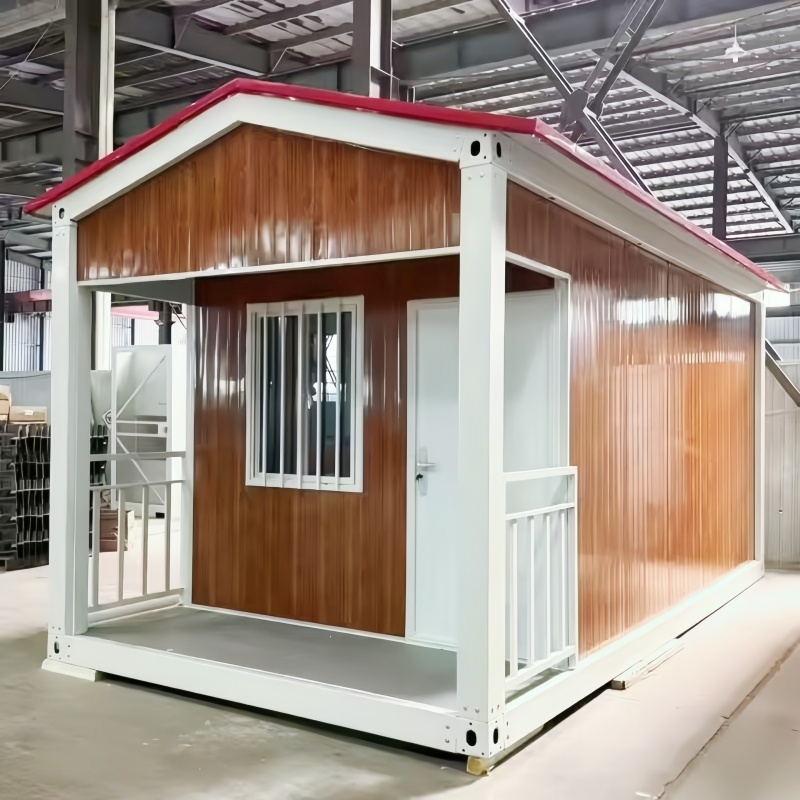

The overall structure of the Steel Structure Triangular Roof Detachable Container House is based on a standardized steel structure square frame, combined with a stable triangular roof design. It not only has a simple and elegant appearance but also can effectively distribute the force, enhancing its wind resistance, pressure resistance and earthquake resistance capabilities. It is particularly suitable for use in various complex environments.
Item No :
TSH-76Order(MOQ) :
1Product Origin :
ChinaFrame Structure :
Galvanized Steel FrameWindow :
Aluminum sliding window, sliding window with security barEarthquake Resistance :
Grade 8
| Product Information: | Product Name: | A-frame Portable Container Steel House Factory | ||
| Dimensions: | 5950mm(L)*3000mm(W)*2800mm(H) | 50mm thickness wall panel, 2mm thickness galvanized steel | ||
| Internal Net Dimensions: | 5650mm(L)*2850mm(W)*2600mm(H) | |||
| Weight (KG) | Weight: 1200kg | |||
| The dimensions can be customized. Please contact customer service if needed. | ||||
Affordable and Versatile Container Dormitories for Modern Housing Needs:
Container dormitories are affordable, modular, eco-friendly, and portable. They offer quick assembly, durability, and efficient space use, making them ideal for various temporary housing needs.
Superior Strength and Durability: Galvanized Steel Structure of Container Offices:
Container offices with galvanized steel structures offer high strength, corrosion resistance, and durability, ensuring long-lasting, low-maintenance, and secure workspaces in any environment.
| Frame Structure | Project | Specifications | Unit | Quantity |
| Top Frame: | Top Long Beam: 2mm Galvanized Steel, Top Frame 180mm | Pieces | 4 | |
| Top Short Beam: 2mm Galvanized Steel, Top Frame 180mm | Pieces | 2 | ||
| Bottom Frame: | Bottom Long Beam: 2mm Galvanized Steel, Bottom Frame 160mm | Pieces | 4 | |
| Bottom Short Beam: 2mm Galvanized Steel, Bottom Frame 160mm | Pieces | 2 | ||
| Columns: | Column: 2mm C-shaped Galvanized Steel, 160*160mm | Pieces | 4 | |
| Bolts: M12*25mm High-strength Carriage Bolts | Set | 64 | ||
| Angle Heads: | 160*160mm, Wall Thickness 4.0mm | Set | 8 | |
| Powder Coating: | Powder Coating: | Electrostatic spray process, does not fade for 5 years | Suite | 1 |
| Pressing Slot | Top Beam Pressing Slot: Alloy Profile Thickness 1.0mm | Pieces | 2 | |
| Top Short Beam Pressing Slot: Alloy Profile Thickness 1.0mm | Pieces | 2 | ||
| Square Tube System | Chassis Purlin | 50mm*100mm Galvanized Square Tube, Thickness 1.2mm | Pieces | 9 |
| Top Plate Purlin | 50mm*50mm Galvanized Square Tube, Thickness 1.5mm | Pieces | 2 | |
| 50mm*50mm Galvanized Square Tube, Thickness 1.1mm | Pieces | 1 | ||
| 40mm*60mm Galvanized Square Tube, Thickness 1.1mm | Pieces | 6 | ||
| Door Frame Column | 20mm*40mm Galvanized Square Tube, Thickness 1.1mm | Pieces | 1 | |
| Wall | Rock Wool Wall Panel | Color steel composite board thickness 50mm, color steel double-sided thickness 0.3 mm, PE film attached, white color, double-sided | set | 1 |
| ribbed; PU sandwich panel | ||||
| Door & Window | Steel Door | Steel package door, size ≥ W925 mm × H2035 mm, fire door lock | piece | 1 |
| External Window | PVC window with double glass, 0.93*1.2 m | pieces | 2 | |
| Other | Interior Floor | Bulu Board Thickness: 1.5m | pieces | 4 |
| Roof Waterproof Tile | Single-layer Color Steel Waterproof Tile with Interlocking Thickness: 0.3mm | sheets | 5 | |
| Roof Insulation Layer | Glass Wool Roll, Thickness: 40mm, Density: 20kg/m3, Non-combustibility Class A | roll | 1 | |
| Interior Ceiling Tile | 0.3 mm double-layer color steel 831 type corrugated tile | sheets | 5 | |
| Other Auxiliary Materials | Includes all standard screws, structural adhesives, etc. | set | 1 | |
| Electrical system | Electrical Configuration | 1. Standard national standard wire; incoming wire 4, air conditioner socket 4, general socket 2.5, lighting 1.5. (Circuits can be | Set | 1 |
| customized to meet certification requirements of different countries) | ||||
| 2. Circuit breaker system; 2P63A main switch 1 | Set | 1 | ||
| 3. Lighting; LED ceiling light*2. | Set | 1 | ||
| 4. Five-hole socket*4; standard three-hole socket*1 (socket standard can be configured according to customer requirements) | Set | 1 | ||
| Performance Parameters | Insulation Performance | λ=0.048 W/m·K | ||
| Sound Insulation Performance | Sound insulation level ≥ 30 dB | |||
| Waterproof Performance | 360-degree bite, free drainage, 16 mm/min precipitation without leakage | |||
| Floor Live Load | 2.0 KN/㎡, 400-500 kg per square meter | |||
| Wind Resistance | 0.6 KN/㎡, withstand 11-12 level wind | |||
| Fire Resistance | A grade | |||
| Earthquake Resistance | ≥ 8 level | |||
| Temperature Range | -45°C to 60°C | |||

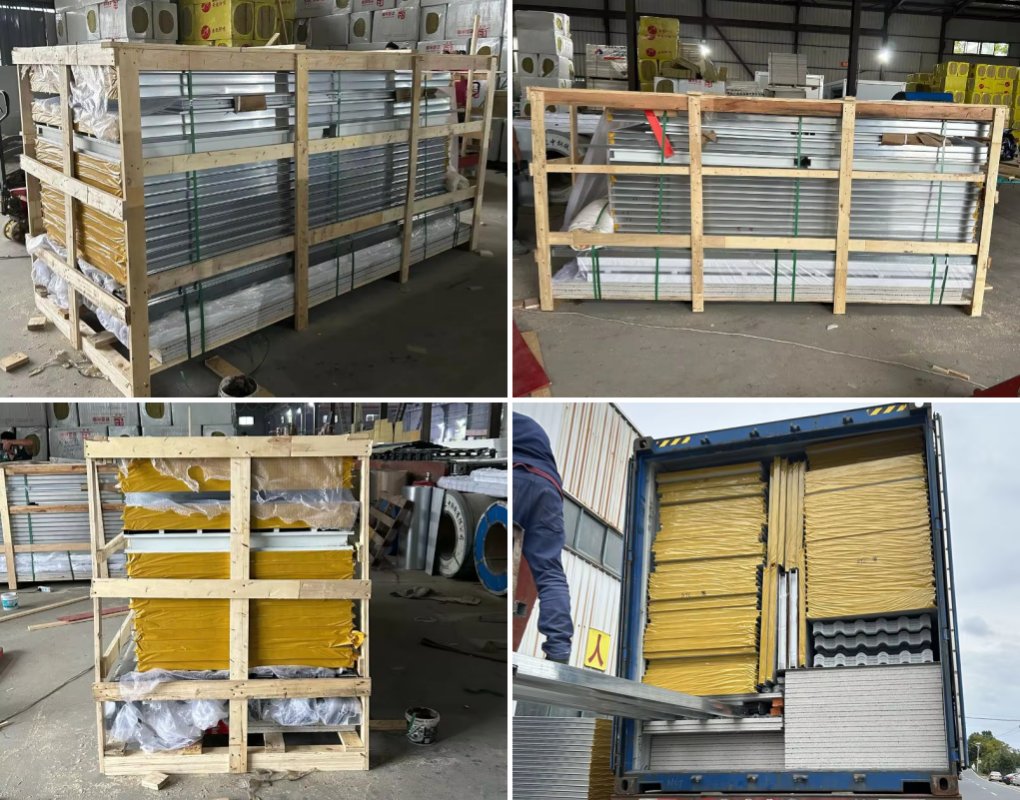

The components of the Prefabricated Triangle Roof Mobile Container House are all prefabricated in the factory. On-site, only the installation drawings need to be followed for assembly, without the need for complex construction procedures or large machinery. This significantly shortens the construction period, and the entire structure can usually be completed and put into use within a few days. This rapid installation method and the method of packing and transporting individual parts effectively reduce labor costs, construction risks, and transportation costs.
Customer Feedback:

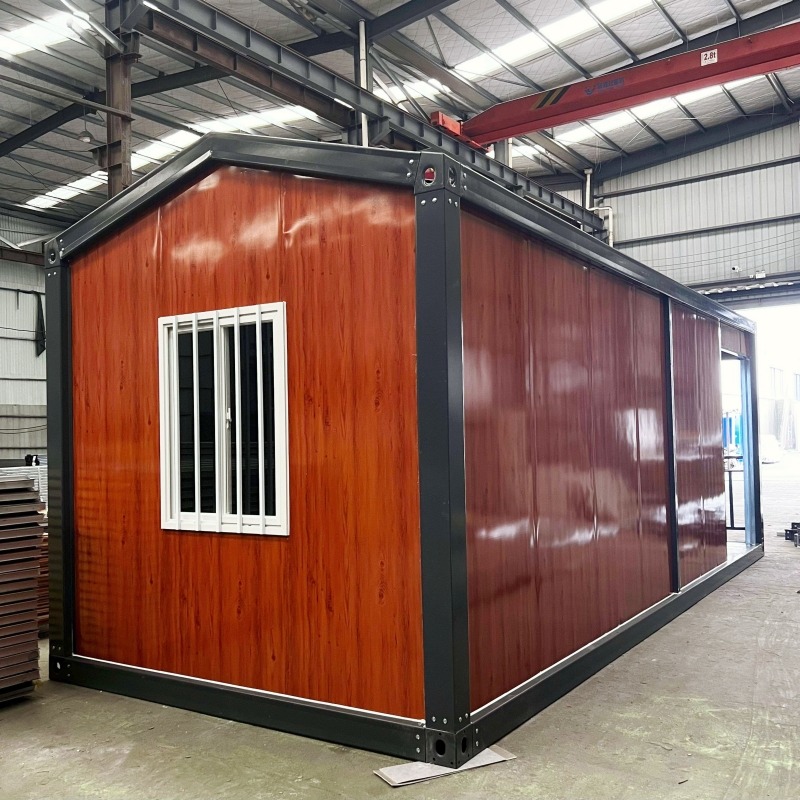

Factory Photos:
FAQ:
Q1:Do you support small-batch customization for your 20ft Container Homes?
A1:Yes, we support small-batch customization. Our houses can be tailored according to your specific requirements, including layout, size, materials, and interior configuration. This flexibility allows customers to order even small quantities while still receiving solutions that match their project needs.
Q2:Do you provide design drawings for the Triangle Roof Container House?
A2:Yes, we provide free design drawings. Our professional design team offers layout plans and basic structural drawings based on your requirements, helping you clearly understand the project before production and ensuring a smooth and efficient installation process.
Q3:What tools and equipment do I need to prepare for the installation of Prefabricated Rectangle Steel Container House?
A3:Crane, hand saw, hand drill, hexagonal screwdriver, rubber hammer, utility knife,hole saw, non-slip gloves, glass glue gun, tape measure, medical box, marker, foot ladder, spirit level.
Q4:Does your product leak water?
A4:There are quite a number of domestic manufacturers, due to lack of professionalism and irresponsibility for quality, which leads to the problem of water leakage in the box. So far, our company has never experiencedwater leakage problems in overseas orders.
Q5:Do you need a foundation?
A5:If the land will not subside, there is basically no need to lay foundations. According to different geological conditions, our company will provide guidance and suggestions. If you buy container from us, we will give you complete foundation drawings and we will have video instructions for installation.
Q6:How are your container house insulated?
A6:Wall panels are made of 50mm rock wool sandwich panels, and can be upgraded to 75mm and 100mm thickness, which is better for extreme cold and hot weather
Q7:Can the floor be covered with insulation?
A7:Yes, no problem.
